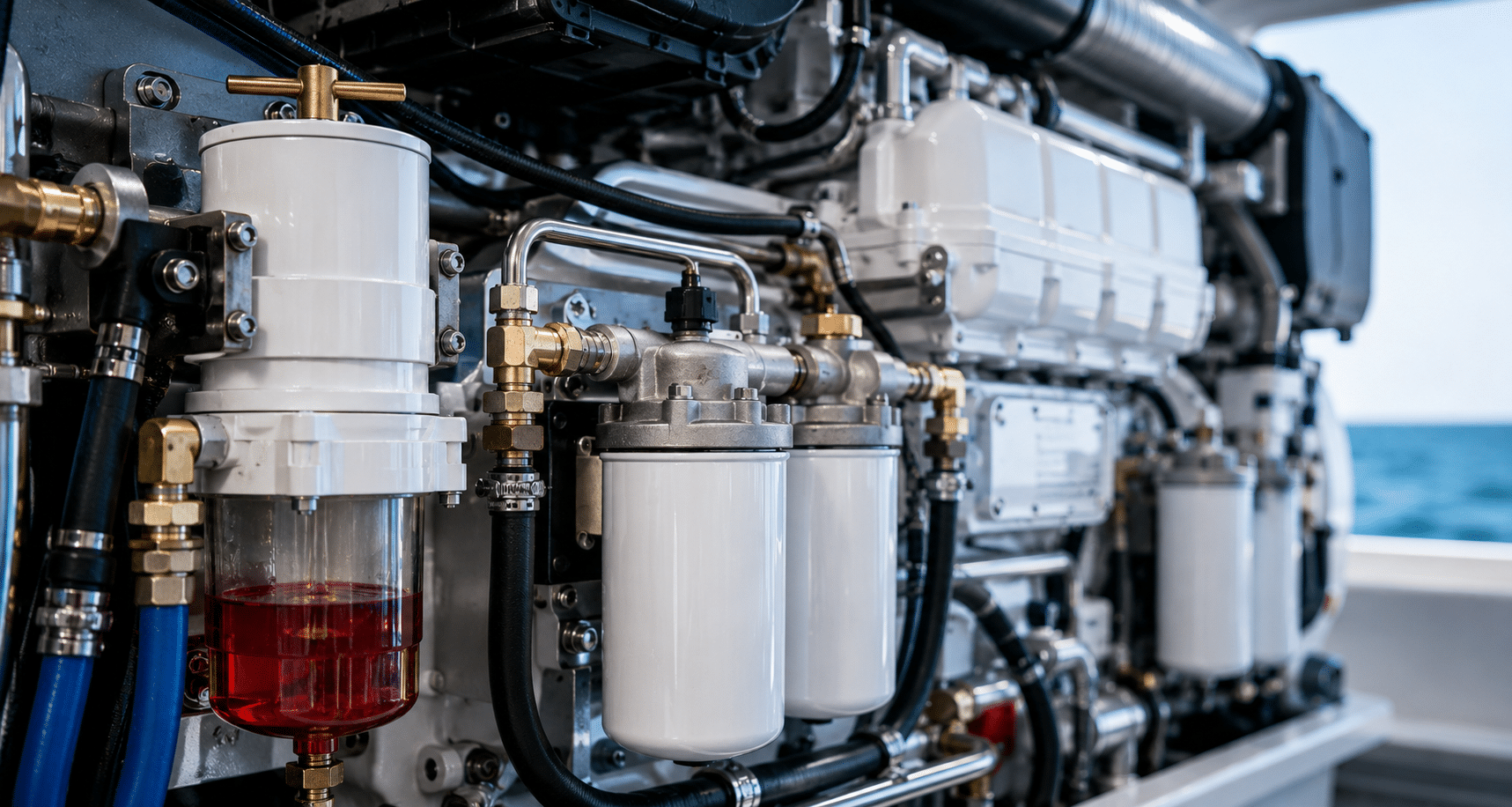

Marine Diesel Fuel Systems

Common symptoms include hard starting, no-start conditions, loss of power, reduced RPM under load, unstable engine operation, excessive smoke, frequent fuel-filter restriction and fuel-pressure fault codes.

Because these symptoms can also be caused by other engine problems, proper diagnostics are important.

An engine that operates normally at idle but loses power under load may not be receiving enough fuel as demand increases.

Restricted filters, blocked fuel lines, weak lift pumps, tank restrictions or other fuel-delivery problems can cause this condition.

Turbocharger, air-flow and mechanical problems can create similar symptoms, so diagnosis should evaluate the complete engine system.

Yes. A severely restricted fuel filter can limit fuel flow enough to cause loss of power, unstable operation or engine shutdown.

Repeatedly clogged filters may indicate contamination inside the vessel's fuel tank that should also be addressed.

Water can enter fuel tanks through condensation, contaminated fuel deliveries, leaking deck fills, damaged caps or other openings.

Marine vessels are especially vulnerable because of humidity and changing tank temperatures.

Finding significant water in a separator should prompt further inspection of the fuel supply.

Yes. Water can reduce lubrication and cause corrosion or damage within high-pressure diesel fuel pumps and injectors.

Modern common-rail systems are especially sensitive to contaminated fuel.

Water contamination should be corrected promptly before the engine continues operating.

Fuel polishing circulates diesel through specialized filtration equipment to remove water, sediment and other contaminants.

It can help restore usable fuel when contamination is present, although heavily contaminated tanks may require additional cleaning.

Injector problems may cause rough running, smoke, difficult starting, poor fuel economy, reduced power or uneven cylinder performance.

These symptoms can also result from fuel-pressure, compression or other engine problems, so injector testing or diagnostics should be performed before replacement.

Symptoms can include hard starting, no-start conditions, reduced power, low fuel-pressure readings, engine shutdown or fault codes.

Fuel-filter restrictions, air leaks and blocked lines can produce similar symptoms and should be ruled out before a pump is replaced.

A common-rail system uses a high-pressure pump to supply diesel to a shared fuel rail, where electronically controlled injectors precisely meter fuel into each cylinder.

These systems provide excellent performance but operate at very high pressure and are sensitive to contamination.

Yes. Air can interrupt fuel delivery and prevent proper injection pressure from being established.

Air may enter after filter replacement or through leaking hoses, fittings, seals or other suction-side fuel-system components.

Repeated loss of prime can result from air leaks, damaged fuel lines, loose fittings, failing check valves, filter-housing problems or other issues that allow fuel to drain back or air to enter.

The system should be inspected rather than repeatedly primed without correcting the source.

Replacement intervals depend on the engine manufacturer, filter system, operating hours and fuel quality.

Contaminated fuel may require filters to be changed much more frequently than normal.

Manufacturer maintenance recommendations should be followed whenever available.

In some cases, fuel polishing and filtration can remove water and contaminants and restore usable diesel.

The appropriate approach depends on the type and severity of contamination.

Heavily contaminated fuel or tanks may require additional cleaning or fuel replacement.

Yes. Many marine diesel fuel-system inspections, pressure tests and repairs can be performed directly at the vessel.

All Tech Diesel provides mobile service throughout Naples, Marco Island and surrounding Southwest Florida communities.

Continuing to operate with significant water contamination can expose pumps and injectors to damage.

If water is discovered in the fuel separator or a water-in-fuel warning appears, the cause and extent of contamination should be evaluated before continued operation.
